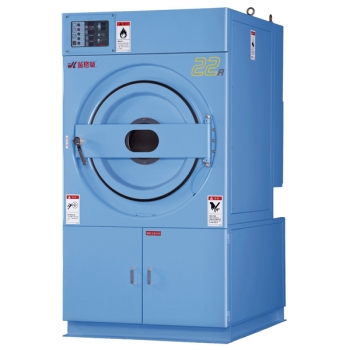

Recover Dryer Series
ENA-22R
 |
Semi-open type refrigerant reclamation enables highreclamation percentage, preventing pollution without public harm. |
|
Micro-computer control combined with special sensor for temperature regulation minimizes gas explosion and danger while ensuring maximum safety. |
|
Various errors will display on the screen automatically. |
|
Once power is turned on, if there is no motion over 30 minutes, power will shut off automatically. |
|
6 programs input capability. Washed clothes can be dried. |
|
Heat energy from compressor is reclaimable for saving energy. |
|
Low temperature drying is suitable for fine clothes. |
|
No need to use cooling tower or chiller. |
| Mode ENA-22R | |||||
| Loading(kg) | 22kg | Compressor | High pressure setting | 26 kg/cm2 | |
| Drum | Diameter(mm) | 800mm | Low pressure setting | 3.0 kg/cm2 | |
| Depth(mm) | 800mm | Controller to prevent frost | 95 ℃ | ||
| Capacity(Liter) | 402L | Low pressure processor | 5/8〞 | ||
| R.P.M | 35.36.37.38.39.40 rpm | Pipe | Steam | 1/2〞 | |
| Punch hole | ø6mm | Cooling water | 1/2〞 | ||
| Air flow | 25m3/min | Condensing temperature | 4℃ | ||
| Door dimension | Front | ø560mm | Steam pressure | 7.0 kg/cm2 | |
| Rear | * | Duct pipe | ø200mm | ||
| Controlled by | CS-168 | Suggest use of refrigerants | R22x1.5kg | ||
| Motors | Drum motor | 0.4kw x 6P | Power supply | 3ph 220V/380V 50/60Hz | |
| Blower | 0.75kw x 4P/2P | Operating circuit | 200V/220V | ||
| Refrigerator | 2.2kw | Distributed electricity | 2.0mm2/2.0mm2 | ||
| Total capacity | 3.35kw | Maximum current | 13A/10A | ||
| Breaker | 20A/20A | ||||
| Dimension | 1105Wx1835Dx2065H | ||||
| Net weight | 700kg | ||||
